In a fully automated automotive manufacturing facility (Industry 4.0), where every process is synchronized to the millisecond and each robot executes movements with surgical precision, the paint line is particularly vulnerable to electrical disturbances.
Voltage sags: why does your Ppoduction line stop “without reason”?
Even in advanced industrial environments, the power supply does not always provide ideal stability. Voltage sags—short-duration reductions in nominal RMS voltage lasting only a few milliseconds (typically between 20 and 200 ms)—are the root cause of most “unexplained” stoppages, followed by waveform distortions and short overvoltage events.
These disturbances may originate from multiple sources, most commonly:
- Switching operations in the external electrical distribution network.
- Start-up of large loads within the facility (compressors, motors, power equipment switching).
- Switching of high-power equipment.
- Remote faults in medium-voltage (MV) lines that clear automatically.
- Typical power quality issues in end-of-line factories located in oversized industrial parks.
For a lighting system, such disturbances may go unnoticed—perhaps a brief flicker. For a robotic paint line, however, they trigger a complete shutdown due to the automatic protection mechanisms of technologically advanced machinery that is highly sensitive to electrical disturbances.

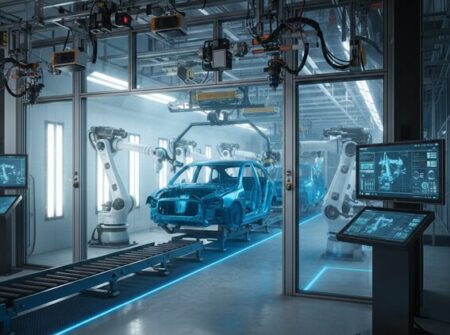

Robotic paint line in an Industry 4.0 automotive production plant. Developed in collaboration with IAG
The “cascade effect”: from a few poorly managed milliseconds to hours of downtime and production losses
When a 40–50% voltage sag occurs for as little as 50 milliseconds, the failure sequence is immediate:
- Disconnection of variable frequency drives (VFDs): Internal protection thresholds detect the voltage drop and initiate protective shutdown.
- Loss of synchronization: Painting robots interrupt their programmed trajectories.
- Activation of safety protocols: PLCs enter fault mode and stop the ongoing process.
- Complete line stoppage: Car bodies in process are compromised and require manual restart.
Restarting is not a simple push of a button. It requires safety checks and parameter recalibration. What began as a 50-millisecond disturbance turns into hours of downtime and production losses, with a corresponding decline in productivity ratios and operational excellence indicators.
DVR or industrial UPS? what you really need
When a production or maintenance manager identifies voltage sags as the underlying problem, the first reaction is often to consider an industrial UPS. However, for the specific case of robotic paint lines, the DVR is technically and economically superior.
DVR (Dynamic Voltage Restorer) – Designed for Voltage Sags:
- Provides dynamic voltage compensation through high-speed power electronics in real time (< 5 ms).
- Injects only the energy required to maintain nominal voltage during the sag.
- Does not require batteries: no dedicated rooms and no periodic replacements.
- Minimal footprint within the plant.
- Purpose-built solution for voltage sags: protects precisely against the actual failure mechanism.
Industrial UPS – Designed for Prolonged Outages:
- Operates based on battery systems with limited service life (3–5 years).
- Periodic battery replacements increase long-term OPEX (operational expenditure).
- Designed to maintain voltage during extended outages (minutes or hours).
- Oversized for millisecond-scale voltage sag events.
Therefore, if your paint line stoppages are caused by voltage sags—the most common scenario—the DVR provides targeted protection without oversizing the installation. It is the most technically and economically efficient solution.
Graph: Three-phase DVR response to a voltage sag. Source: ZGR Corporación.
Real case: how six DVRs eliminated stoppages in a 4.0 automotive paint line
A highly automated automotive manufacturing plant (brand name withheld due to customer confidentiality) was experiencing recurring stoppages in its robotic paint line. Maintenance reports showed no equipment faults, and power quality analysis revealed the cause: 40–60% voltage sags lasting between 50 and 150 milliseconds.
The company, a regular customer of ZGR Corporación, requested a technical proposal. We recommended the installation of six 300 kVA DVR systems strategically distributed across the critical zones of the paint line.
A segmented protection strategy aligned with customer requirements
DVR units operate as active compensation systems installed in series with the electrical supply line. Their function is not merely to detect anomalies, but to correct them in real time. When a voltage drop occurs, the DVR instantaneously injects the energy required to maintain nominal voltage. The entire process takes place in less than 5 milliseconds, without VFDs or PLCs perceiving any disturbance.
The proposed six-unit configuration enabled protection to be segmented across critical areas:
- Robot paint application booths.
- Dosing and mixing systems.
- Curing ovens with precise thermal control.
- Measurement and quality control equipment.
This approach provided operational flexibility and facilitates future expansions. The results of implementing this solution were immediate and measurable.
Before installation, unplanned stoppages were frequent, with recovery times ranging from 30 to 90 minutes per event. Car bodies in process were frequently compromised, resulting in quality losses and scrap.
After installation, zero stoppages due to voltage sags were recorded. Robots maintain their programmed trajectories, dosing systems preserve micron-level precision, and curing ovens complete their thermal cycles without disruption.
Beyond avoiding downtime: power quality, equipment lifetime, and energy robustness
Electrical disturbances generate stress in advanced machinery within energy-intensive production plants, leading to wear and progressive reduction of service life.
Beyond preventing long and critical production stoppages, dynamic DVR compensation preserves the integrity of sensitive electronic equipment, reducing unplanned corrective maintenance and premature component replacement—costs that can amount to tens of thousands of euros.
Dynamic DVR compensation preserves the integrity of the most sensitive equipment and reduces corrective maintenance.
With the implementation of six DVR units, the plant strengthens its energy robustness and protects its productivity and quality standards while mitigating operational risks.
Technical Service: Specialized Engineering 24/7
Protecting a robotic paint line against voltage sags is not simply a matter of purchasing equipment. It requires a specialized engineering approach to guarantee the optimal solution for the specific characteristics of each installation.
ZGR Corporación engineer working in collaboration with a customer’s technical team during the installation of a high-power DVR.
ZGR provides a comprehensive service covering everything from the initial audit to after-sales support throughout the entire service life of the equipment:
- Technical audit and power quality analysis: Before any installation, we conduct a detailed technical audit including power quality measurements, critical load profile analysis, and identification of vulnerable points. This ensures proper solution sizing, avoiding costly oversizing or insufficient protection.
- Custom design and manufacturing: DVR systems are specifically engineered for the electrical characteristics of your installation. This ensures full compatibility with existing systems and optimizes response to the most probable voltage events in your particular environment. Our DVR units are based on proprietary registered patents and certified according to IEC and UL standards.
- Installation with minimal production interference: Our technical service team coordinates with plant personnel to install the DVR systems without compromising daily operations.
- Commissioning and performance verification: ZGR’s technical service performs comprehensive functional testing, event simulation, and fine parameter adjustment. We do not deliver or activate the warranty until the equipment has been verified to operate exactly as specified.
- Corrective and preventive maintenance, and continuous technical support: ZGR’s maintenance service ensures optimal short- and long-term operation, offering different service contract models and remote technical support to provide rapid response to any eventuality. For us, electrical stability is a structural pillar of our customers’ production processes, and we are fully committed to it.
Protecting power quality means protecting production
Does your production line suffer unexplained stoppages? If maintenance reports show no clear equipment faults yet interruptions continue, you are likely experiencing voltage sags, waveform distortions, or short-duration overvoltages.
At ZGR Corporación, we develop customized solutions backed by comprehensive technical service. We work closely with production and maintenance managers, installers, and industrial engineering firms to identify and resolve voltage sag issues before they impact production and quality.
