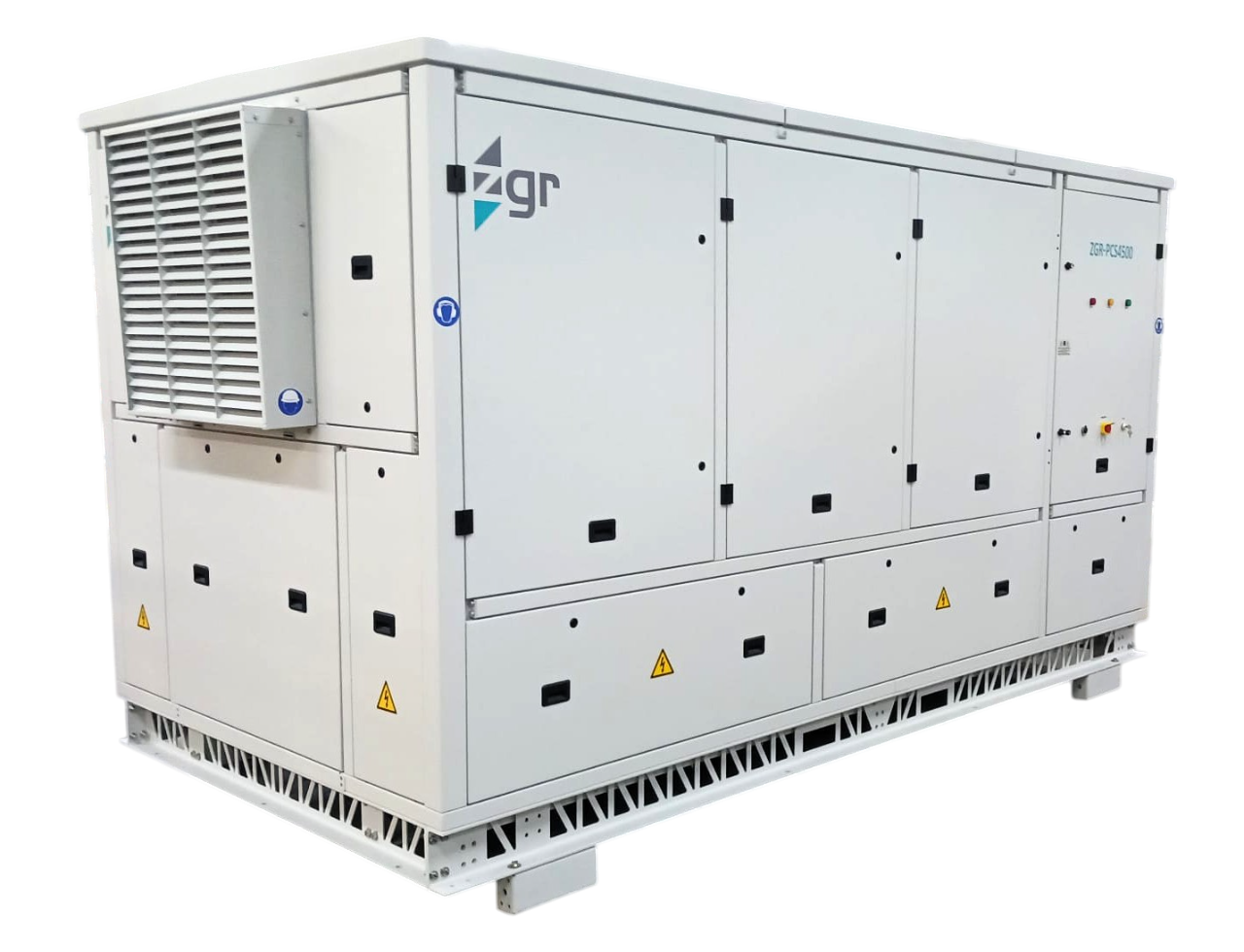

ZGR PCS 4500
Bidirectional battery charger

ZGR PCS 4500

ZGR PCS 4500 is a bidirectional battery charger. This equipment integrates advanced grid stabilization and regulation functions.

Request information

Characteristics

ZGR PCS 4500 is a three-phase charger with the latest bidirectional control technology. Thanks to its different operating modes, this equipment offers grid operators a comprehensive tool for more flexible energy distribution by regulating power, voltage and frequency,guaranteeing the availability of the electrical grid.

In addition, it has a “Black Start” function, increasing the manageability of energy within the installation. Its design for outdoor use and extreme temperature conditions makes it the perfect solution for large-scale storage projects.

  • Operational modes: Frequency control; Black-Start (island mode); Active energy reserve; Voltage control; Active / Reactive power control; Inertia emulation.
  • Quick response to set point changes.
  • Wide range of working temperatures, from -20 ºC to +60 ºC.
  • Scalable, parallel equipments.
  • AC protections: Short-circuits and overcharges; Overvoltages and low voltages.
  • DC protections: Short-circuits (fuse); Overvoltage.
  • AC and DC breaker integrated.
  • Remote monitoring via Web Server.
  • Communication standard: TCP/IP.
  • Other communication standard on demand: SNMP, IEC 104...

Technical details

TECHNICAL SPECIFICATIONS
Model ZGR PCS 4500
Power modules 6
DC INPUT
Maximum power voltage range (Pmax) 975 - 1500 V
Maximum DC voltage, Vdc max 1500 V
Maximum input current, Idc 4620 A
Maximum short circuit current, Isc 6930 A
N.º input (Up to) 36
Overvoltage category OVC II
AC OUTPUT
Nominal Power with cos phi = 1 (@50 °C) 4500 kW
Nominal output current, Iac 3762 A
Nominal voltage 690 Vac ± 10 %
THDi < 3% at nominal power
Power Factor range 0 -1 lead / lag (configurable)
Grid frecuency AC / range 50 / 60 Hz ±5 Hz
Maximum short circuit current, Isc (Breaking capacity) 200 kA
Maximum fault current (Ipeak 5 mseg) 9750 A
Output overcurrent electronic protection (2 seg) 4512 A
Output overcurrent protection (< 500 mseg) 7524 A
Overvoltage category OVC III
EFFICIENCY
Max 98,8 % ± 0,1 %
PROTECTIONS
DC connection protection Fuse + DC breaker
AC connection protection AC breaker
DC surge protection Surge arrester, type II
AC surge protection Surge arrester, type II
Ground fault monitoring Isolation monitoring
Degree of protection: (according to IEC 60529) Outdoor - IP55
ENVIRONMENTAL AND MECHANICAL CHARACTERISTICS
Dimensions (H x W x L) 2529 x 2014 x 4053 mm
Approx. Weight 6200 Kg
Self-consumpltion (stand-by) < 250 W
Internal auxiliary power supply Integrated transformer
Operating temperature range -20 °C - +60 °C (Max power up to 50 °C)
Noise emissions <65 dB @10m
Max. relative humidity (without condensation) 0 % a 95 %
Protection class Class I
Max. operating altitude (without derating / with derating) 2000 m / 4000 m
Air consumption 24000 m3 / h
DC connection Connection bar for cable terminal for each inlet (one per pole)
AC connection Connection bar for cable terminal for each inlet (one per phase)
Enclosure colour RAL 7035
COMMUNIICATIONS
Communications Ethernet, Modbus TCP
CERTIFICATIONS & COMPLIANCE
Standards UNE-EN IEC 62109-1; UNE-EN IEC 62109-2; CISPR11/EN 55011 + AMD1 + AMD2; EN 61000-6-2; NTS UE 2016/631 Rev 2.1; NTS P.O.12.2 SENP; EN IEC 62477-1
