Bidirectional battery charger

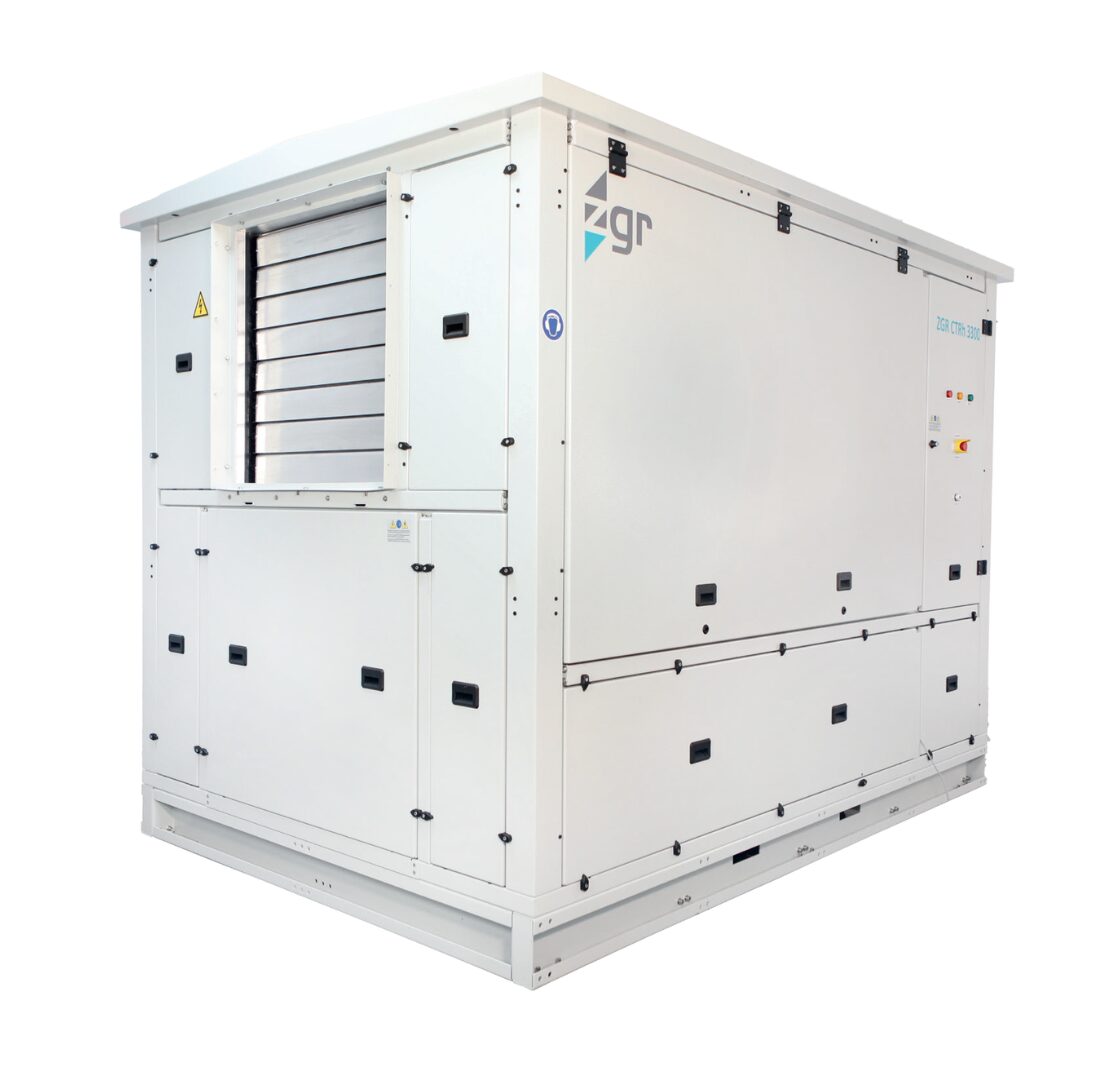

ZGR PCS 3000

ZGR PCS 3000 integrates advanced grid stabilization and regulation functions.

Request information

Characteristics

ZGR PCS is a three-phase inverter with the latest bidirectional technology.The objective of the equipment is to convert the energy of the grid into energy in batteries and return it when there is energy demand.

Thanks to its different operating modes, ZGR PCS 3000 offers grid operators and other grid agents an integral tool for a more flexible energy distribution by regulating power, voltage and frequency, guaranteeing the availability of the electrical grid; it also has Black-Start function, increasing the manageability of the energy within the installation. In addition, outdoor solutions are a perfect solution for large-scale storage projects.

Operational modes: Frequency control, Black-Start (island mode), Active energy reserve, Voltage control, Active / Reactive power control, Inertia emulation
Quick response to set point changes
Scalable, parallel equipments
AC protections: Short-circuits and overcharges, Overvoltages and low voltages
DC protections: Short-circuits (fuse), Overvoltage
AC and DC breaker integrated
Remote monitoring via Web Server
Communication standard: TCP/IP
Other communication standard on demand: SNMP, IEC 104...

Technical details

TECHNICAL SPECIFICATIONS

Model	ZGR PCS 3000
Power modules	4

DC INPUT
Maximum power voltage range (Pmax)	975 - 1500 V
Maximum DC voltage, Vdc max	1500 V
Maximum input current, Idc	3080 A
Maximum short circuit current, Isc	4620 A
N.º input (Up to)	24
Overvoltage category	OVC II

AC OUTPUT
Nominal Power with cos phi = 1 (@50°C)	3000 kW
Nominal output current, Iac	2508 A
Nominal voltage	690 Vac ± 10%
THDi	<3% at nominal power
Power Factor range	0 -1 lead / lag (configurable)
Grid frecuency AC / range	50 / 60 Hz ±5Hz
Maximum short circuit current, Isc (Breaking capacity)	200 kA
Maximum fault current (Ipeak 5 mseg)	6500 A
Output overcurrent electronic protection (2 seg)	3008 A
Output overcurrent protection(<500mseg)	5016 A
Overvoltage category	OVC III

EFFICIENCY
Max	98,8 % ±0,1%

PROTECTIONS
DC connection protection	Fuse + DC breaker
AC connection protection	AC breaker
DC surge protection	Surge arrester, type II
AC surge protection	Surge arrester, type II
Ground fault monitoring	Isolation monitoring
Degree of protection: (according to IEC 60529)	Outdoor - IP55

ENVIRONMENTAL AND MECHANICAL CHARACTERISTICS
Dimensions (Height x Width x Length)	2529 x 2014 x 2850 mm
Approx. Weight	5250 Kg
Self-consumption (stand-by)	< 250 W
Internal auxiliary power supply	Integrated transformer
Operating temperature range	-20°C - +60°C (Max power up to 50°C)
Noise emissions	<65 dB @10m
Max. relative humidity (without condensation)	0 % to 95 %
Protection class	Class I
Max. operating altitude (without derating / with derating)	2000 m / 4000 m
Air consumption	16000 m3 / h
DC connection	Connection bar for cable terminal for each inlet (one per pole)
AC connection	Connection bar for cable terminal for each inlet (one per phase)
Enclosure colour	RAL 7035

COMMUNICATIONS
Communications	Ethernet, Modbus TCP

CERTIFICATIONS & COMPLIANCE
Standards	UNE-EN IEC 62109-1; UNE-EN IEC 62109-2; CISPR11/EN 55011 + AMD1 + AMD2; EN 61000-6-2; NTS UE 2016/631 Rev 2.1; NTS P.O.12.2 SENP; EN IEC 62477-1
